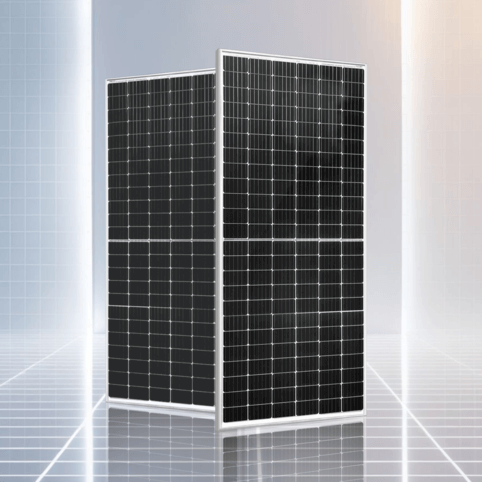

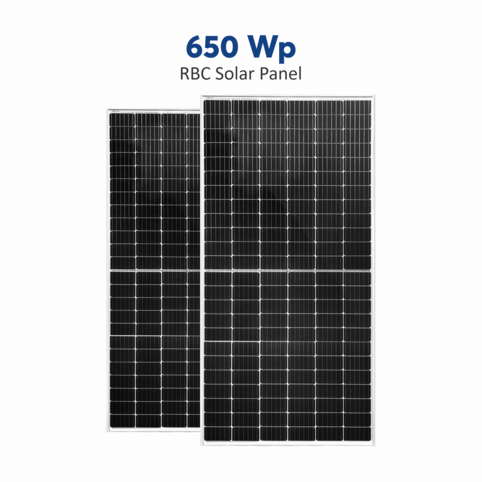

Rayax 650 Wp RBC Solar Panel

The Rayax 650 Wp RBC Solar Module is engineered to deliver exceptional power output, superior efficiency, and long-term reliability for utility-scale, commercial, and high-performance rooftop solar installations.

Built with advanced cell technology and robust mechanical design, this module ensures higher energy yield, lower degradation, and reduced Levelized Cost of Energy (LCOE), even in demanding environmental conditions.

High Power Output – 650 Wp: Generates more energy per module, reducing the number of panels and overall system cost.
Ultra-High Efficiency – up to 24.20%: Maximizes power generation per square meter, ideal for limited space installations.
Low Temperature Coefficient (-0.24%/°C): Ensures better performance and higher energy yield in hot climates.
Low Power Degradation: ≤1% in the first year and ≤0.3% annually thereafter for long-term reliability.
High Mechanical Strength: Withstands heavy snow (5400 Pa), strong wind (2400 Pa), and hail impact up to 35 mm.

Electrical Specification
Maximum Power (Pmax)	650 W
Module Efficiency	24.20%
Open Circuit Voltage (Voc)	53.28 V
Short Circuit Current (Isc)	14.92 A
Maximum Power Voltage (Vmp)	46.92 V
Maximum Power Current (Imp)	13.87 A
Power Tolerance	0 ~ +5 W

Parameter	Specification
Mechanical Specifications
Cell Arrangement	144 cells (2 × 72)

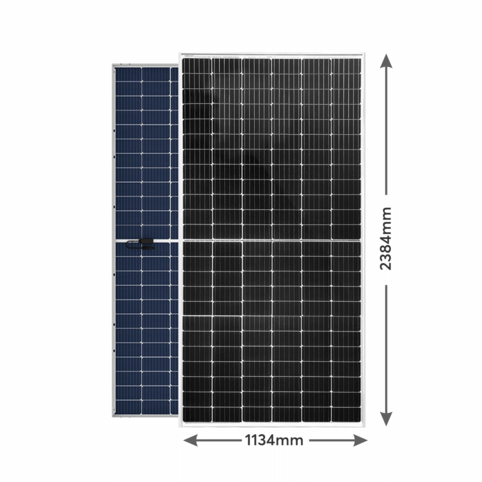

Dimensions	2383 × 1134 × 35 mm (±5 mm)
Weight	32.3 kg (±5%)
Front Glass	Tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP68
Cable	4.0 mm²
Connector	MC4

Get resolutions to all questions

FAQs

What is a Zero BB solar module?

Zero Busbar technology eliminates traditional busbars, improving current flow and reducing resistive losses.

What are the advantages of Zero BB 650 W panels?

Higher module efficiency
Improved mechanical strength
Enhanced reliability and aesthetics
Lower risk of micro-cracks

What projects are suitable for Zero BB modules?

C&I rooftops, ground-mounted plants, and high-efficiency solar installations.
