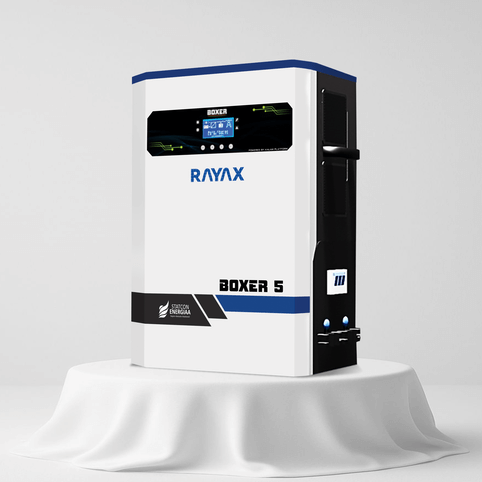

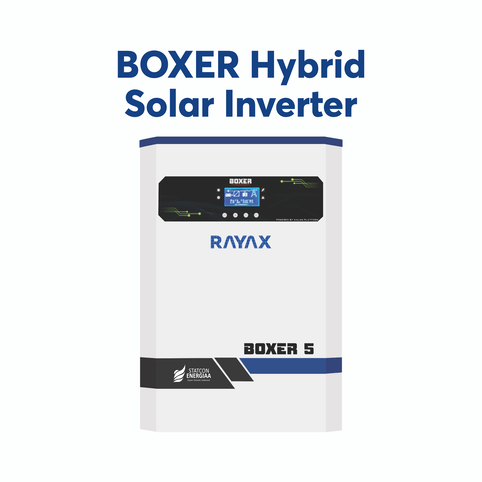

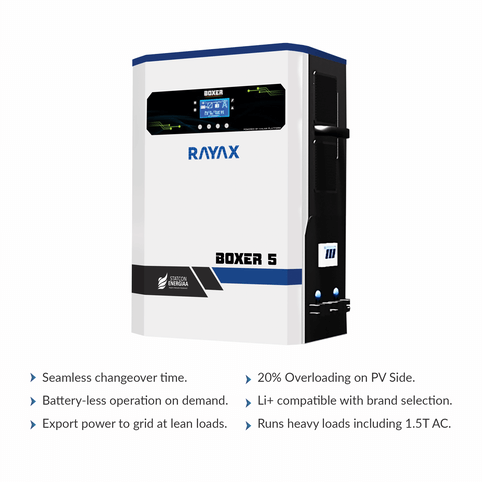

Hybrid Inverter Boxer (1-5 KVA/ 48 V)

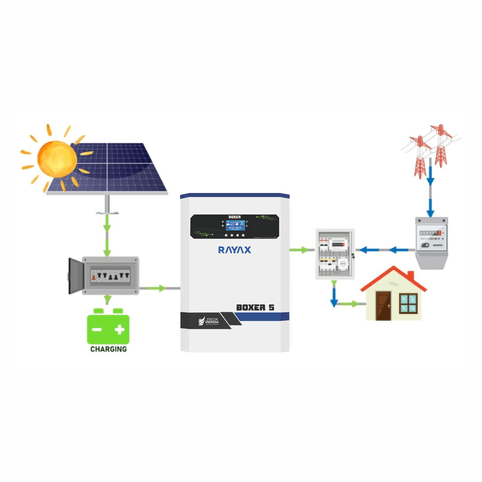

The Boxer is a unique addition to the Indian solar industry, which has long been plagued by inexpensive and frequently failing foreign wall-mounted products. Designed with galvanic isolation, the Boxer protects homes from grid fluctuations while delivering all the advantages of a hybrid inverter in a sleek and highly efficient form factor.
With full lithium battery compatibility, the Boxer is poised to revolutionize Indian households that demand high power output and reliable, long-duration power backup.
| RATINGS MODEL No. |
1KVA/48V BOX-048-01K-1P |
2KVA/48V BOX-048-2K-1P |
3KVA/48V BOX-048-03K-1P |
4KVA/48V BOX-048-04K-1P |
5KVA/48V BOX-048-05K-1P |
|
|---|---|---|---|---|---|---|
| A. MPPT CHARGER | Type (Buck) | MPPT | ||||
| PV Normal Capacity (kWp) | 1.2 | 2.4 | 3.6 | 4.8 | 6 | |
| Max PV Strings in Parallel | 1 | 2 | 3 | 4 | 5 | |
| No. of MPPT Channel / Input | 1/1 | |||||
| Max Open Circuit Voltage (Voc) | 190 | |||||
| MPPT Tracking Range (Vmp) | 75–160 | |||||
| Max Output Current (A) | 23 | 46 | 71 | 94 | 118 | |
| Peak Charging Efficiency | ≥92% | ≥92% | ≥92% | ≥94% | ≥94% | |
| B. SOLAR INVERTER | Nominal Capacity | 1KVA | 2KVA | 3KVA | 4KVA | 5KVA |
| Output Current (A) | 3.5 | 7 | 10 | 14 | 17 | |
| Battery Voltage (V) | 48 | |||||
| Output Voltage / Freq / Phase | 230V ±2% / 50Hz / 1Ph+N | |||||
| Load Power Factor | 0.8 unity | |||||
| Peak Efficiency | ≥88% | |||||
| Over Loads | 101–110% / 111–150% / 151–200% / >200% trip | |||||
| Auto Bypass Feature | Provided | |||||
| Anti Islanding / Power Export to Grid | Provided (IEC 62116 & IEC 61727) | |||||
| C. GRID CHARGER | Grid Voltage Range | 230V (+10% & -20%) | ||||
| Grid Frequency Range | 50Hz (+5% & -5%) | |||||
| Max Grid Import Power | 1.5KVA | 3KVA | 4.5KVA | 6KVA | 7.5KVA | |
| D. PROTECTIONS | PV Side | Reverse Polarity, PV Power Limit, Surge Protection (MOV), O/P Voltage | ||||
| Battery Side | Reverse Polarity, O/U Voltage, Current Limit | |||||
| Grid Side | O/U Voltage, O/U Frequency, Surge Protection (MOV) | |||||
| Load Side | Overload, Short Circuit, Surge Protection (MOV) | |||||
| System Protection | Over Temperature | |||||
| DISPLAY PARAMETERS | Display | Voltage, Current, Battery State, Power, Cumulative Energy, Mode, Active Faults | ||||
| E. MISCELLANEOUS | Switchgear Protection | MCB/MCCB on PV, Battery, Load & Grid | ||||
| LED Indications | Power On, Inverter ON, Solar, Load ON, Grid/Charging, Battery Low, Trip | |||||
| Data Port | RS485 / RS232 (Optional) | |||||
| Remote Monitoring | Optional via GPRS / WiFi | |||||
| Ingress Protection | IP20 (Indoor) | |||||
| Cooling Method | Forced Cooling (Temp Controlled) | |||||
| Operating Temperature | 0–50°C (without derating) | |||||
| Humidity | Max 95% Non-Condensing | |||||
| Altitude | 1000m above sea level | |||||
