Topcon

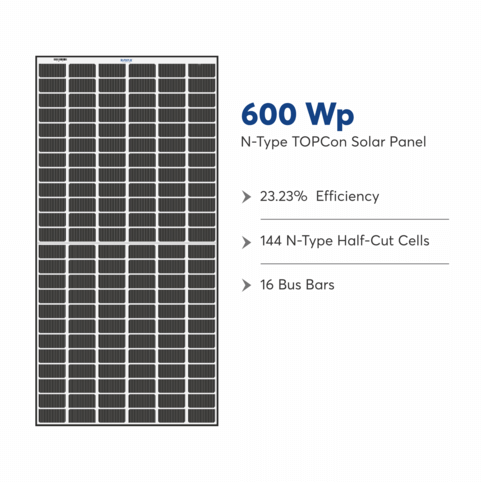

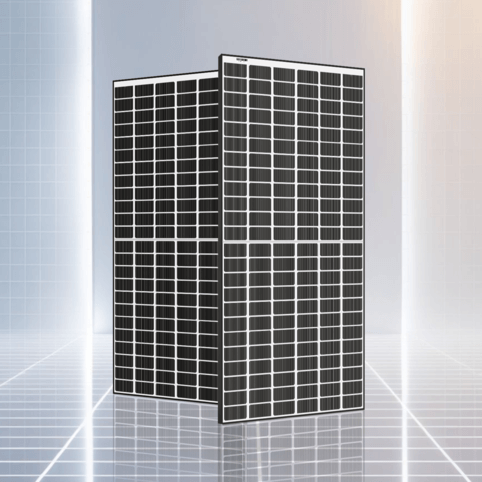

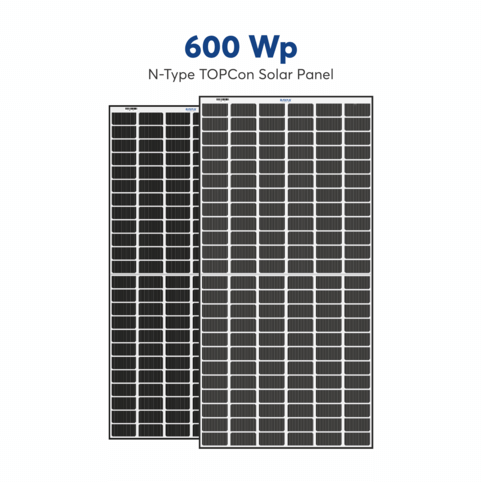

The Rayax 600 Wp Solar Panel with advanced N-Type TOPCon technology delivers an impressive peak power output of 600 Wp, achieving a high conversion efficiency of up to 23.23%. Its bifacial design allows the rear side to generate additional power, increasing overall efficiency up to 25% and boosting total output to 700 Wp under optimal conditions. This high-performance solar module features 144 cells and 16 busbars, ensuring superior energy production and long-term reliability. It is equipped with an MC4 IP68-rated junction box for enhanced protection against water and dust. Designed for maximum performance, the Rayax 600 Wp panel is an ideal choice for high-efficiency solar installations.
| Electrical Specifications: | |
| Module Type | 600 Wp N Type Topcon Bifacial |
| Operating voltage [V] | 34.6 |
| Maximum Power Voltage (Vmp) [V] | 44.78 |
| Maximum Power Current (Imp) [A] | 13.14 |
| Open Circuit Voltage (Voc) [V] | 51.19 |
| Short Circuit Current (Isc) [A] | 14.13 |
| Module Efficiency [%] | 23.23 |
| Additional Features | Better Weak Illumination Response/ZERO LID (Light Induced Degradation) |
| Mechanical Specifications: | |
| Solar Cell Type | N-Type |
| Panel Technology | TOPCon 182 x 91 mm |
| Space Required | 7.42 x 3.72 =24 sq ft |
| Number of cells | 144 Cells (12x6) (12x6) |
| Number of Bus bar | 16BB |

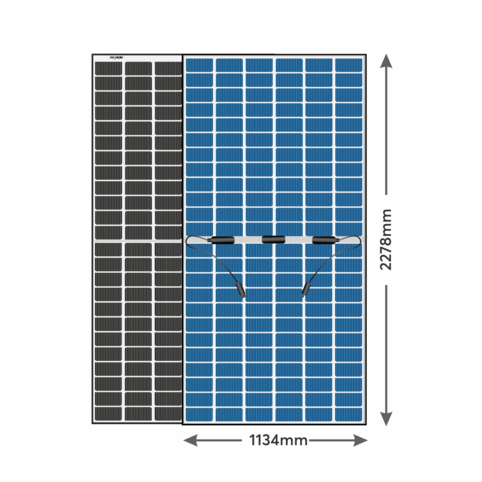

| Module Dimension (L x W x D) | (2278 x 1134 x 30) mm |
| Weight | 30 kg |
| Double Glass | AR-coating toughened glass, 2+2 mm |
| Frame | Black Anodized Aluminium |
| Additional Features | Better temperature coefficient / 10-30% Additional Power/Energy generation |
Get resolutions to all questions
TOPCon (Tunnel Oxide Passivated Contact) is an advanced cell technology that reduces recombination losses and improves efficiency.
Utility-scale, C&I projects, and high-performance solar plants requiring maximum output per module.
