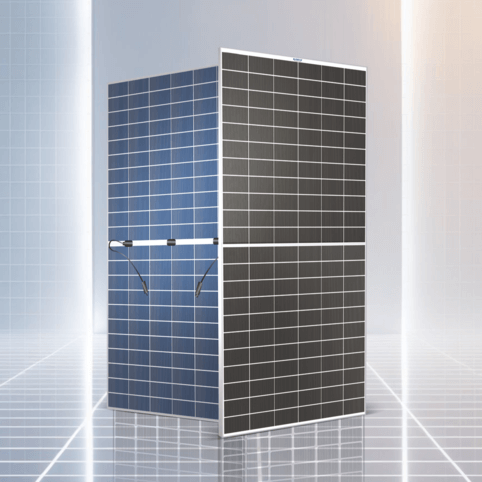

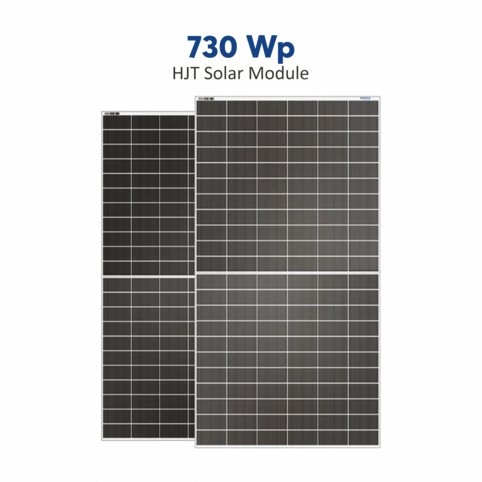

Rayax 730 W HJT

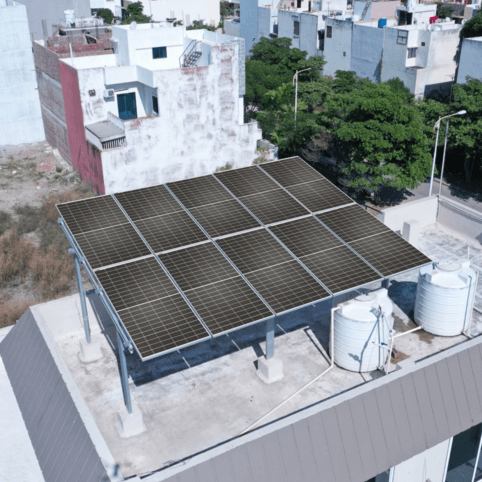

The Rayax 730 W HJT Dual-Glass Solar Panel uses advanced Heterojunction Technology (HJT) to deliver high performance with a conversion efficiency of up to 23.5%. It provides an impressive peak power output of up to 795 Wp with combined front and rear-side efficiency. Designed with 132 high-efficiency cells, it enhances energy generation by up to 20%, and when installed at a height of 1.5 meters, output can increase by 7–20%. The panel features an IP68-rated junction box with three bypass diodes for superior protection and reliability, making it ideal for solar farms, ground-mounted, residential, commercial, and industrial applications .

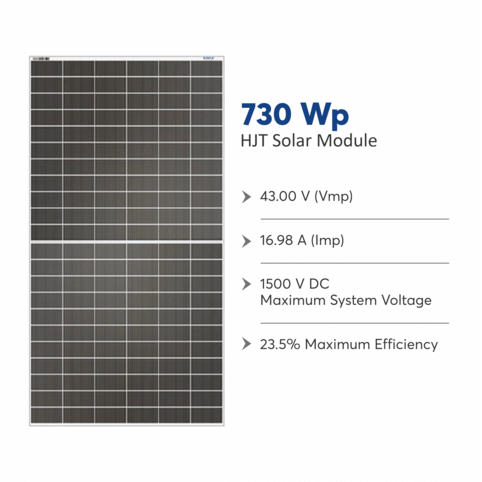

| Electrical Specifications | |
| Peak Power Pmax (W) | 730 |
| Maximum Power Voltage Vmp (V) | 43 |
| Maximum Power Current Imp (A) | 16.98 |
| Open Circuit Voltage VOC (V) | 51 |
| Short Circuit Current ISC (A) | 17.8 |
| Module Efficiency (%) | 23.5 |
| Power Tolerance (W) | 0~+5 |
| No. of Bus Bars | 24/18 |
| *STC: automatic mass AM1.5, irradiance 1000 W/m2, cell temperature 25°C | |
| Mechanical Specifications | |
| Number of Cells | 132 pieces (6*22) |

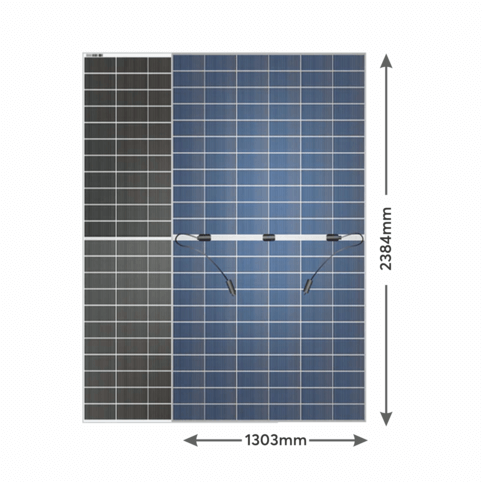

| Module Dimensions | (2384*1303*33) mm |
| Weight | 38.3 kg |
| Front Glass | 2.0 mm, High transmission coated glass |
| Back Glass | 2.0 mm, Semi-tempered glass |
| Frame | Anodized Aluminium alloy |
| Junction Box | IP68 rated |
| Cable | 4.0 mm |
| No. of Diodes | 3 |
| Wind Pressure / Snow Pressure | 2400 Pa / 5400 Pa |
| Connector | MC4 |
Get resolutions to all questions
HJT (Heterojunction Technology) combines crystalline silicon with thin-film layers, delivering very high efficiency and superior temperature performance.
Large utility-scale projects and premium installations where maximum generation is critical.
