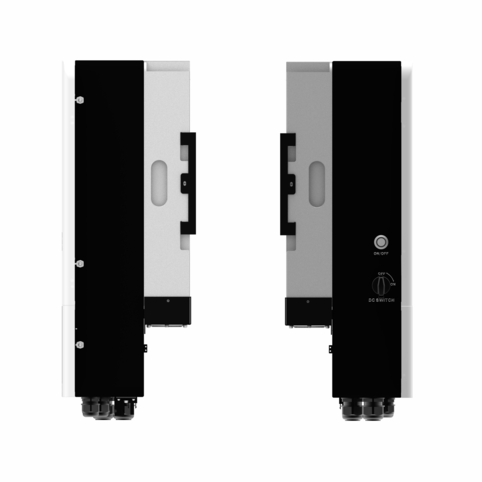

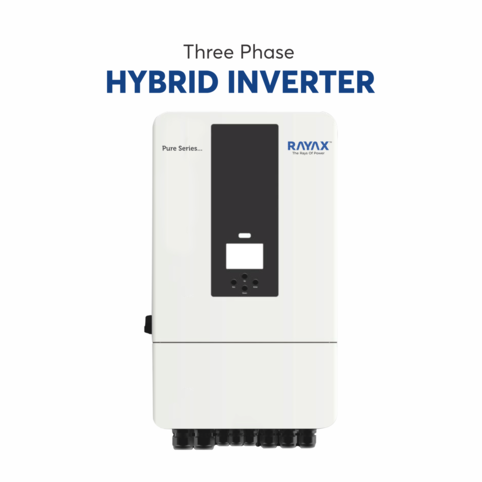

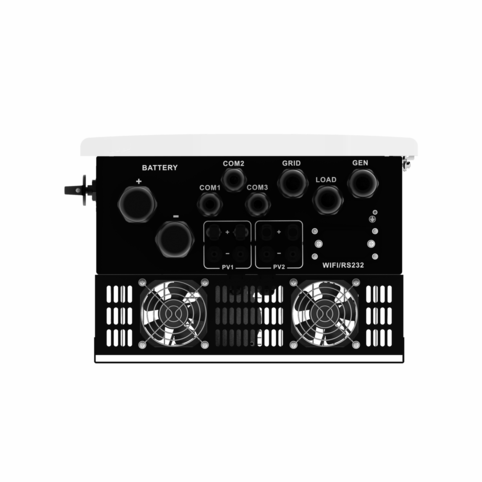

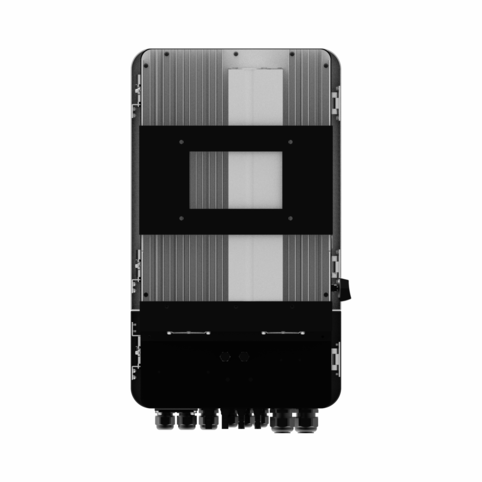

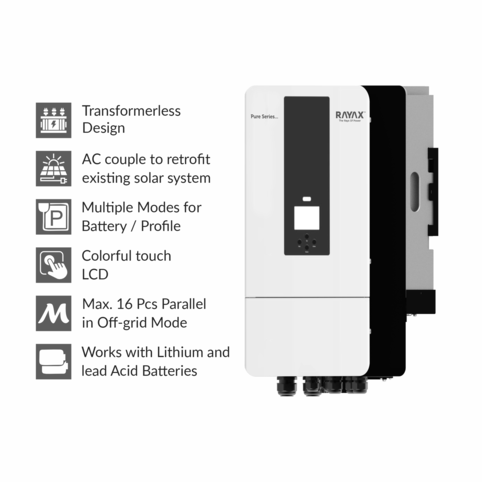

05/06/08/10/12kW Three Phase Hybrid Inverter

Power your world effortlessly with the Rayax Three-Phase Hybrid Inverter, expertly crafted for spacious residential villas, schools, and small commercial spaces. This robust solution seamlessly manages solar, battery, and grid inputs to deliver reliable power precisely when and where it's needed most. Experience uninterrupted energy, optimized performance, and scalable efficiency tailored for demanding applications.

  • Heavy-Duty Performance: Built for demanding high-load applications, ensuring reliable operation under intensive usage.
  • Flexible Energy Modes: Choose battery-first or solar-first priority for customized energy optimization and cost control.
  • Dual MPPT Trackers: Maximizes solar harvest from multiple rooftop arrays for superior efficiency in any condition.
  • Remote Diagnostics: Monitor and troubleshoot via mobile app or cloud platform for effortless maintenance.
  • Perfect Fit Applications: Tailored for schools, offices, and bungalows with scalable power solutions.
Model GTSI-050K3P GTSI-060K3P GTSI-080K3P GTSI-1012K3P GTSI-1215K3P GTSI-150K3P GTSI-2025K3P
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 120 135 190 210 240 280 350
Max. Discharging Current (A) 120 135 190 210 240 280 350
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Input Power (W) 7500 9000 12000 15000 18000 24000 32000
Max. PV Input Voltage (V) 800
Start-up Voltage (V) 160
MPPT Voltage Range (V) 200-650
Rated PV Input Voltage (V) 550
Max. Operating PV Input Current (A) 20+20 20+20 20+20 20+20 36+36 36+36 36+36
Max. Input Short-circuit Current (A) 30+30 30+30 30+30 30+30 54+54 54+54 54+54
No. of MPPT / Strings per MPPT 2/1+1 2/1+1 2/1+1 2/1+1 2/2+2 2/2+2 2/2+2
AC Output Data
Rated AC Output Power (W) (@0.8PF) 6250 7500 10000 12500 15000 18750 25000
Rated AC Output Apparent Power (VA) 5000 6000 8000 10000 12000 15000 20000
Rated AC Input/Output Voltage (Vac) 220/380, 230/400, 240/415, 3L+N+PE
Rated Grid Frequency (Hz) 50-60
Efficiency & Cooling
Max. Efficiency 97.6%
Euro Efficiency 97.0%
MPPT Efficiency >99%
Ingress Protection IP65
Cooling Intelligent Air Cooling
